Motogadget Motoscope Mini Speedometer

The Motogadget Motoscope Mini Speedometer is a timeless masterpiece meticulously crafted to elevate your riding experience.

Housing:

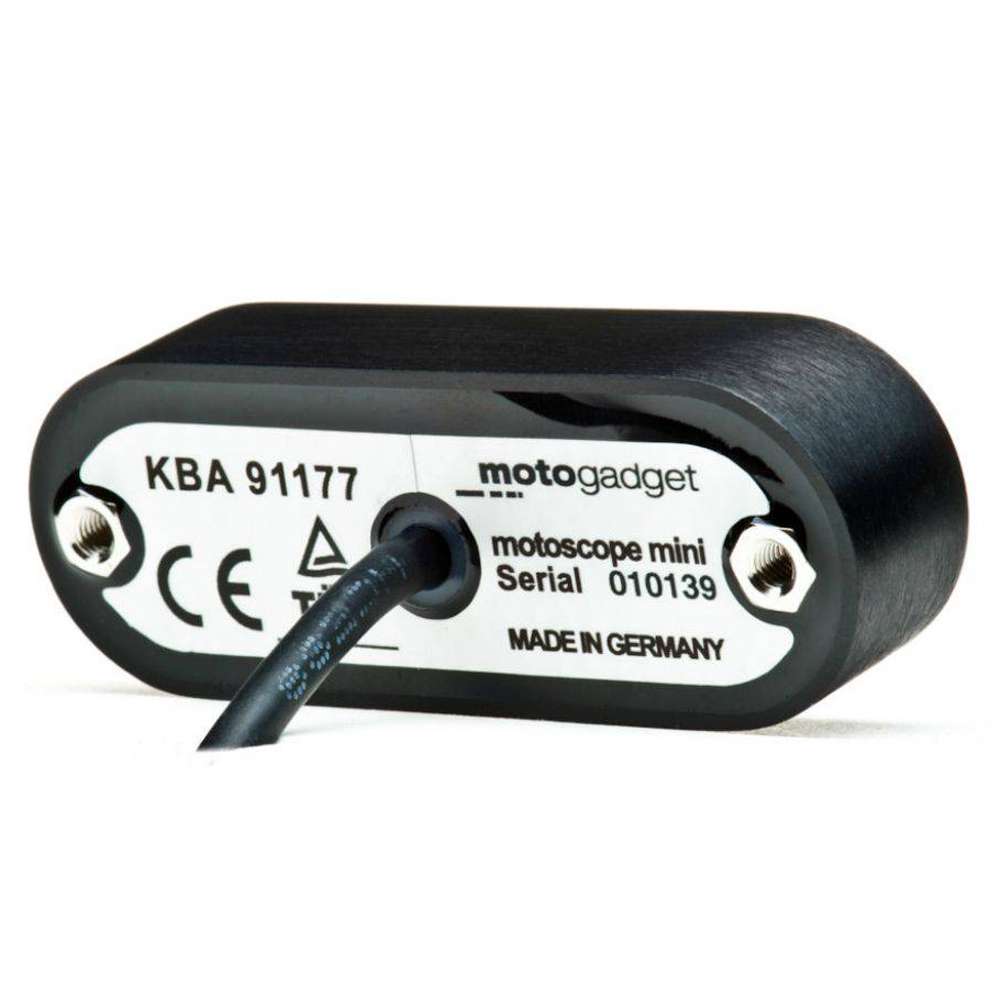

Crafted from high-quality aluminum, the housing of the Motogadget Motoscope Mini Speedometer is precision-milled from a solid block and coated with a black anodized surface.

This ensures durability and protection against various environmental factors such as weather, water, dust, and vibrations.

Display and Functions:

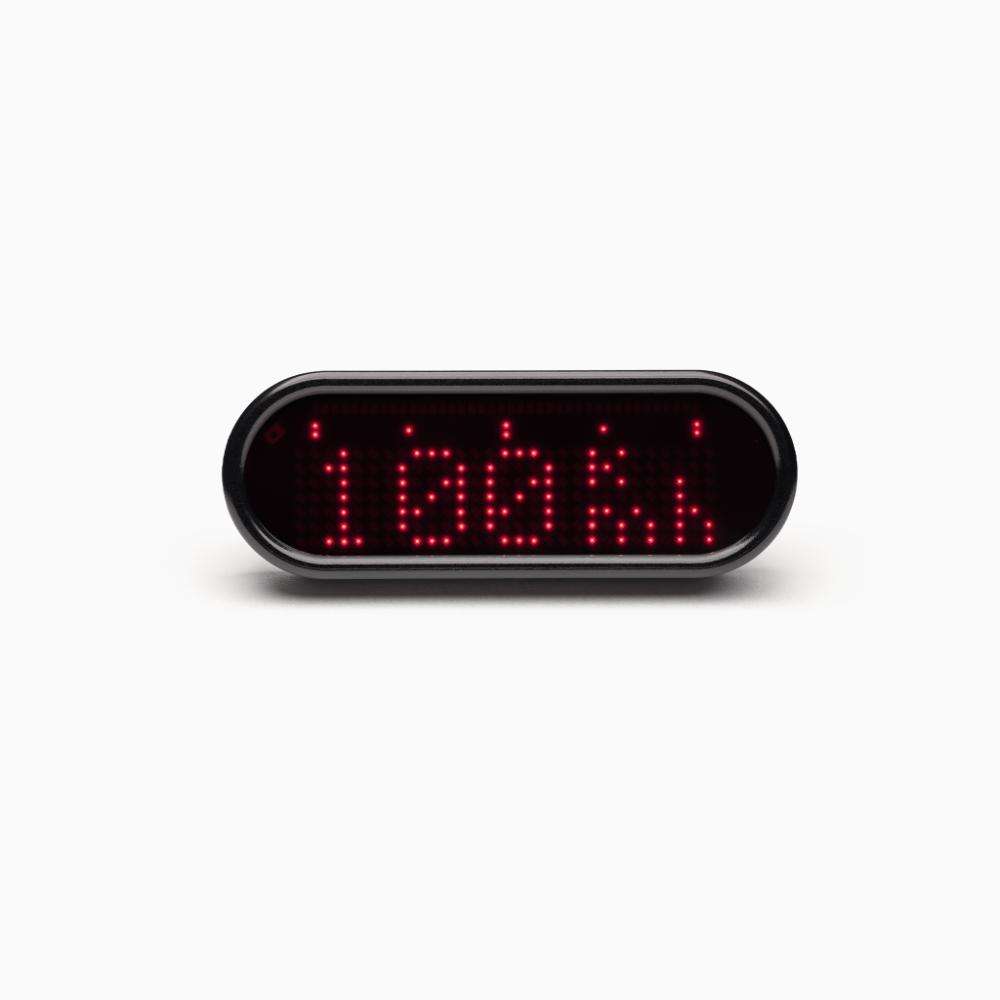

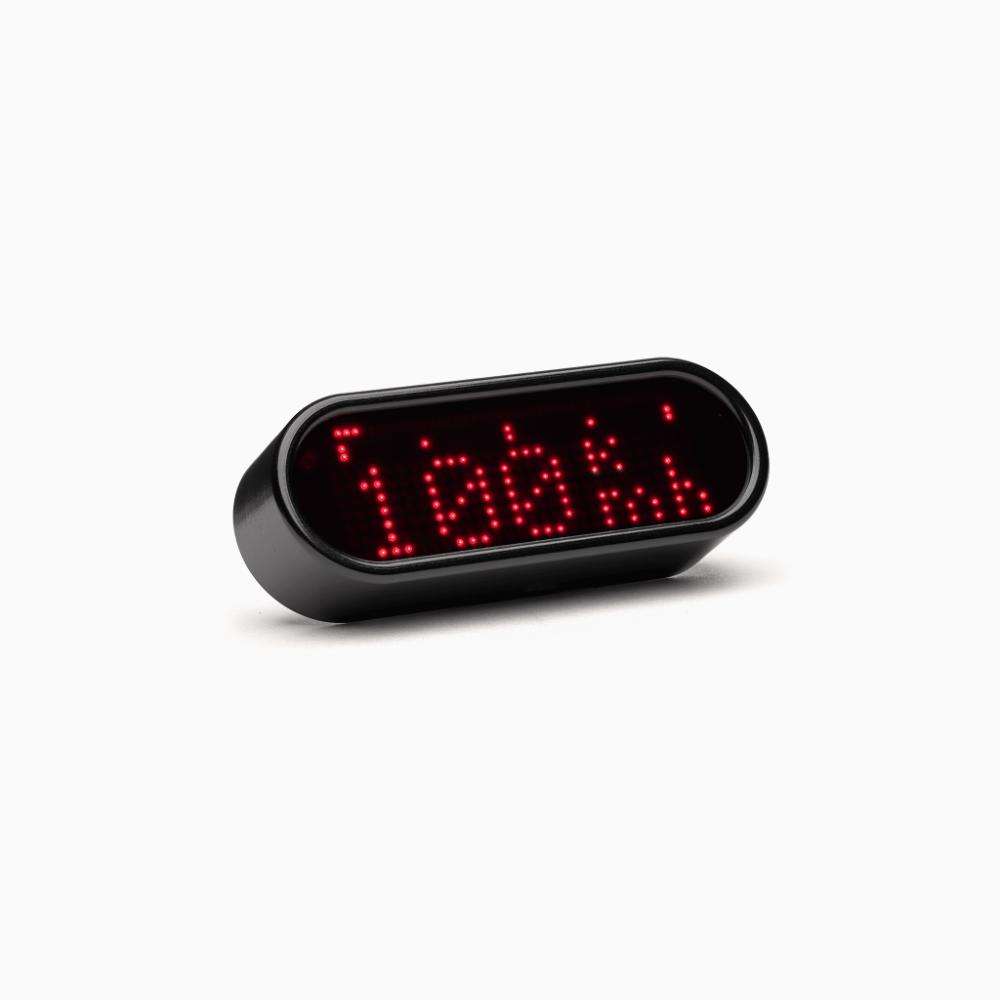

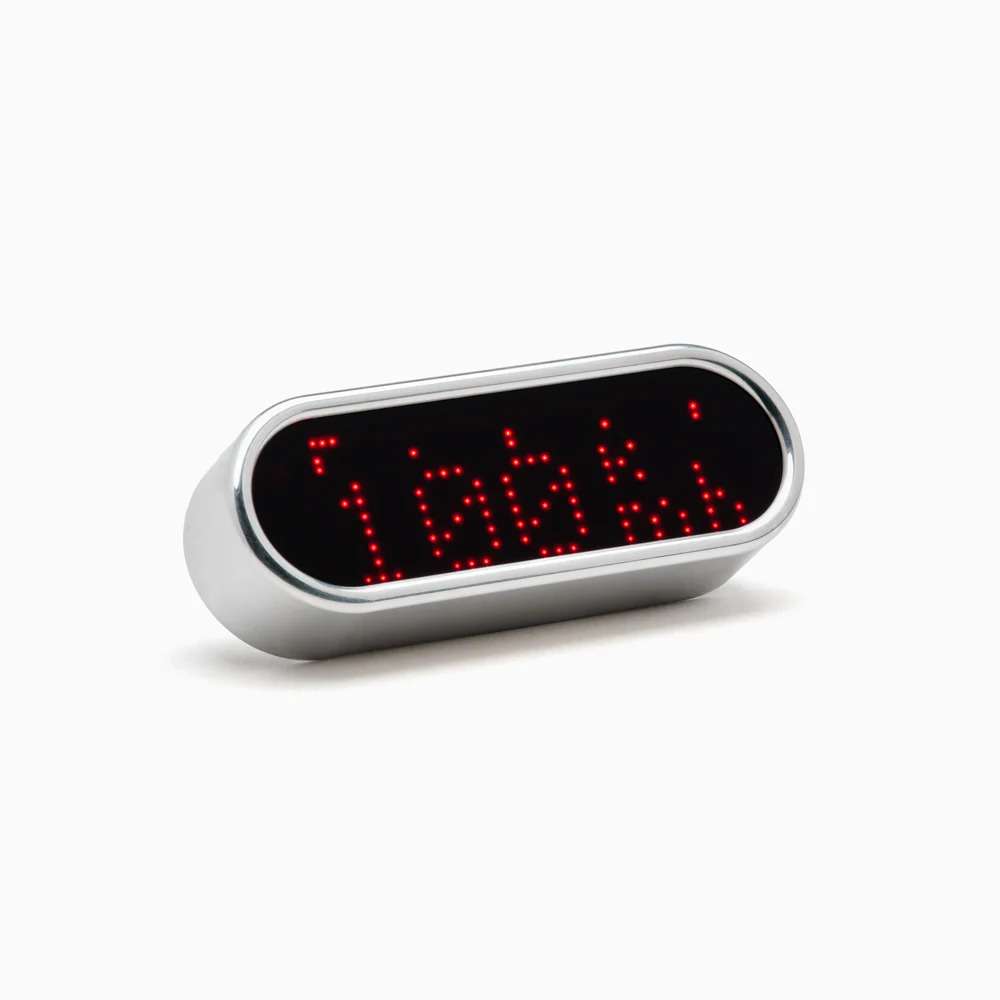

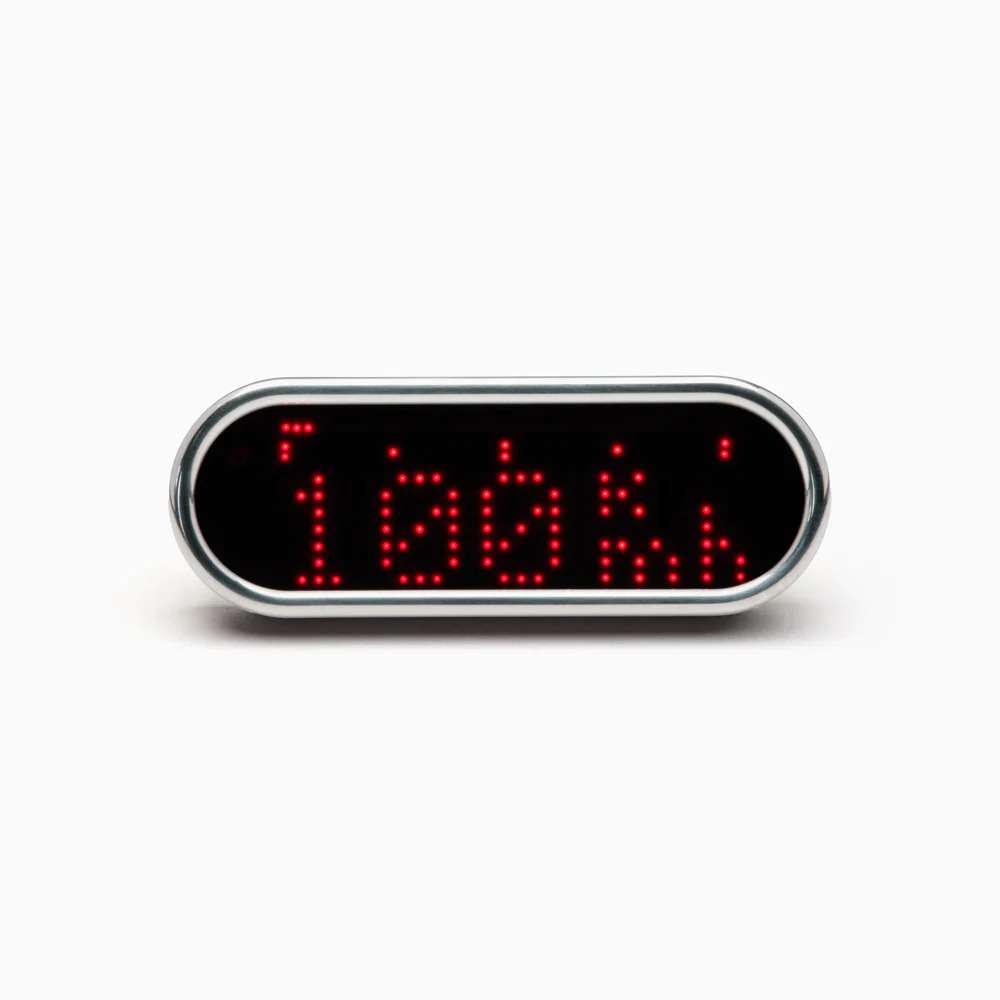

Featuring an innovative dot matrix composed of 251 ultra-bright LEDs, the motoscope mini displays speed through a scalable horizontal light band, while other functions are presented as numerical values.

The luminosity of the LEDs adjusts automatically for optimal readability in different lighting conditions.

Additionally, a speed threshold can be set to trigger all LEDs to pulse when exceeded, serving as a ‘red range’ indicator or a flashing warning.

Notably, the display can show numerical values not only horizontally but also vertically, allowing for versatile mounting orientations.

Functions:

The display can be easily toggled using the included menu button or a light horn button mounted on the handlebars.

The default display is the speed value, but other measured values can be accessed with a short button press.

Optionally, the display can be set to automatically revert to the speed value after a short period or remain on a specific display of choice.

Preset settings and stored values are retained even without power supply.

Installation:

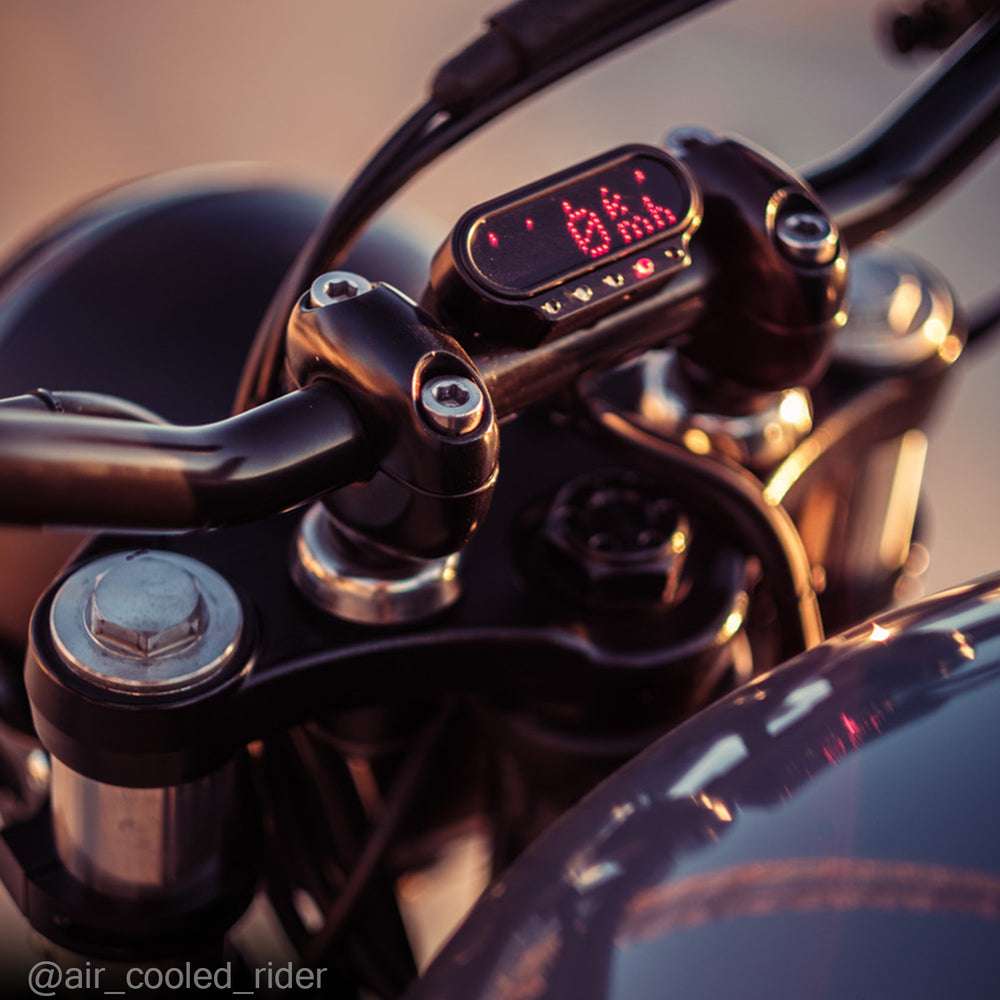

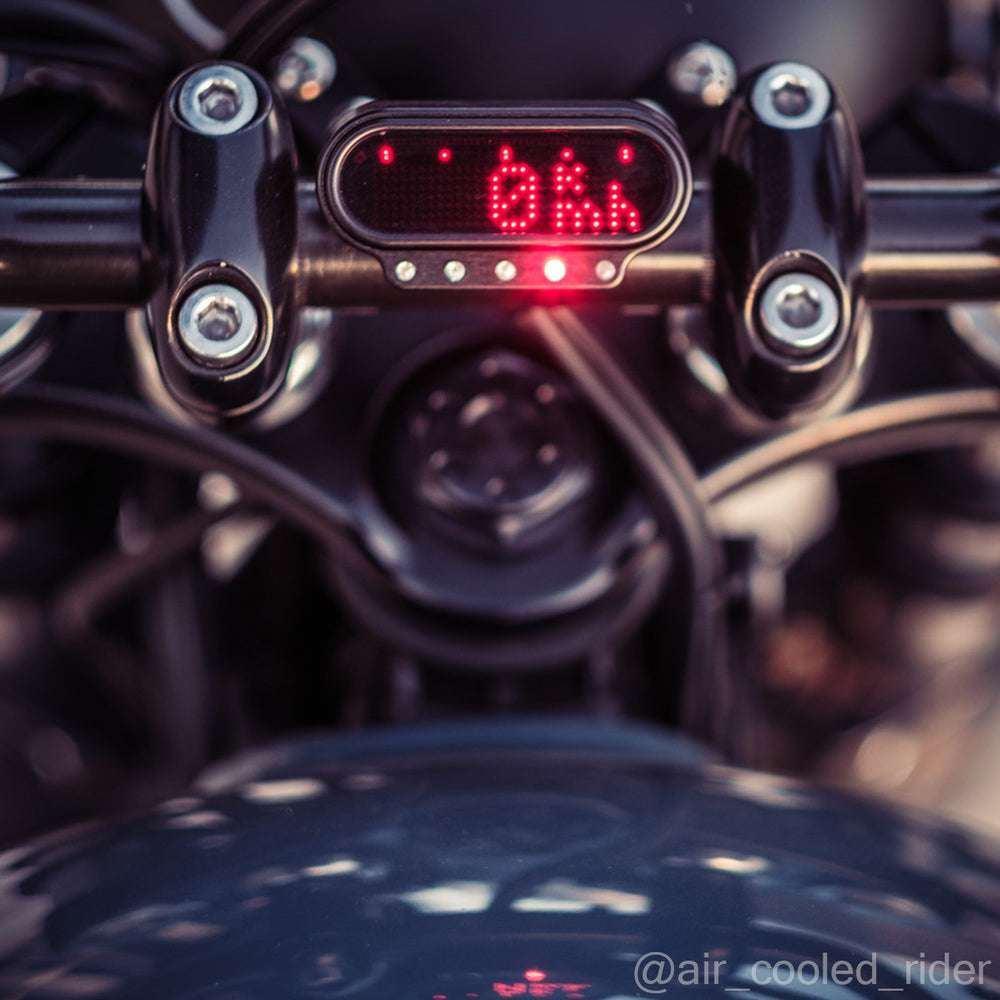

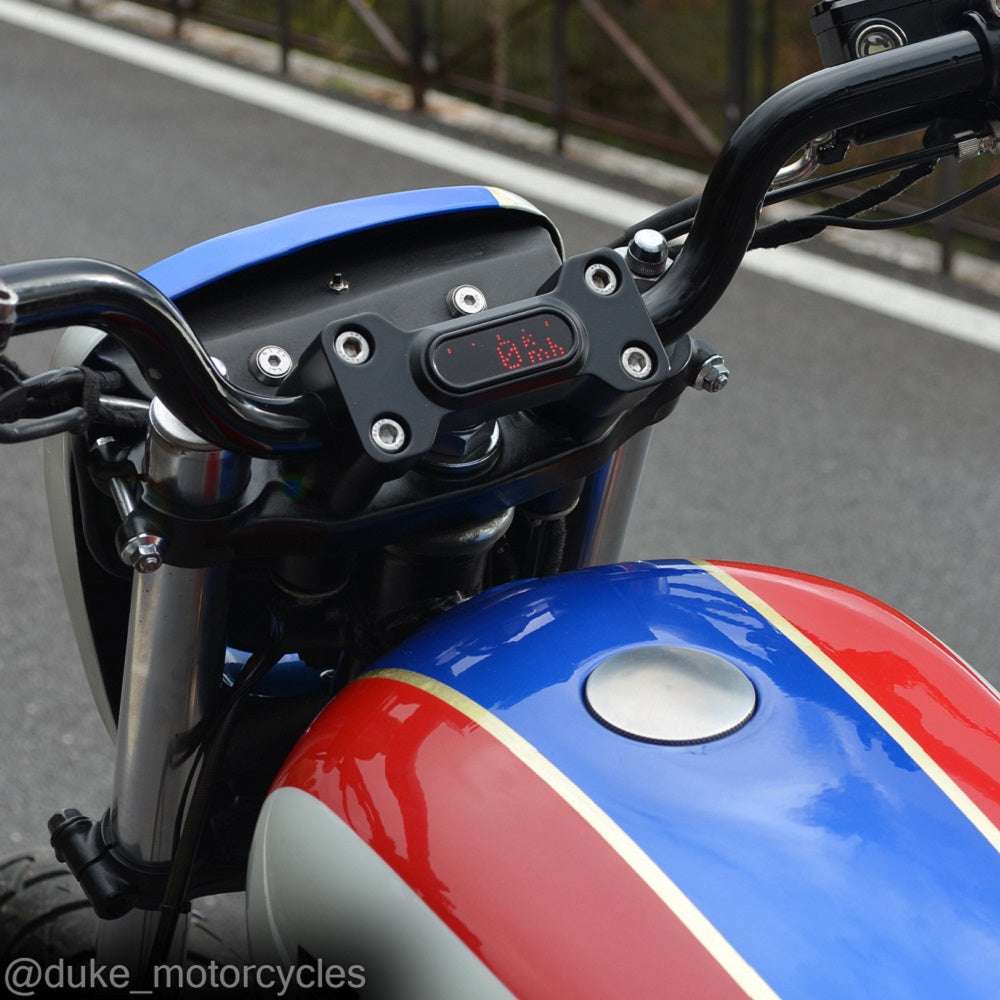

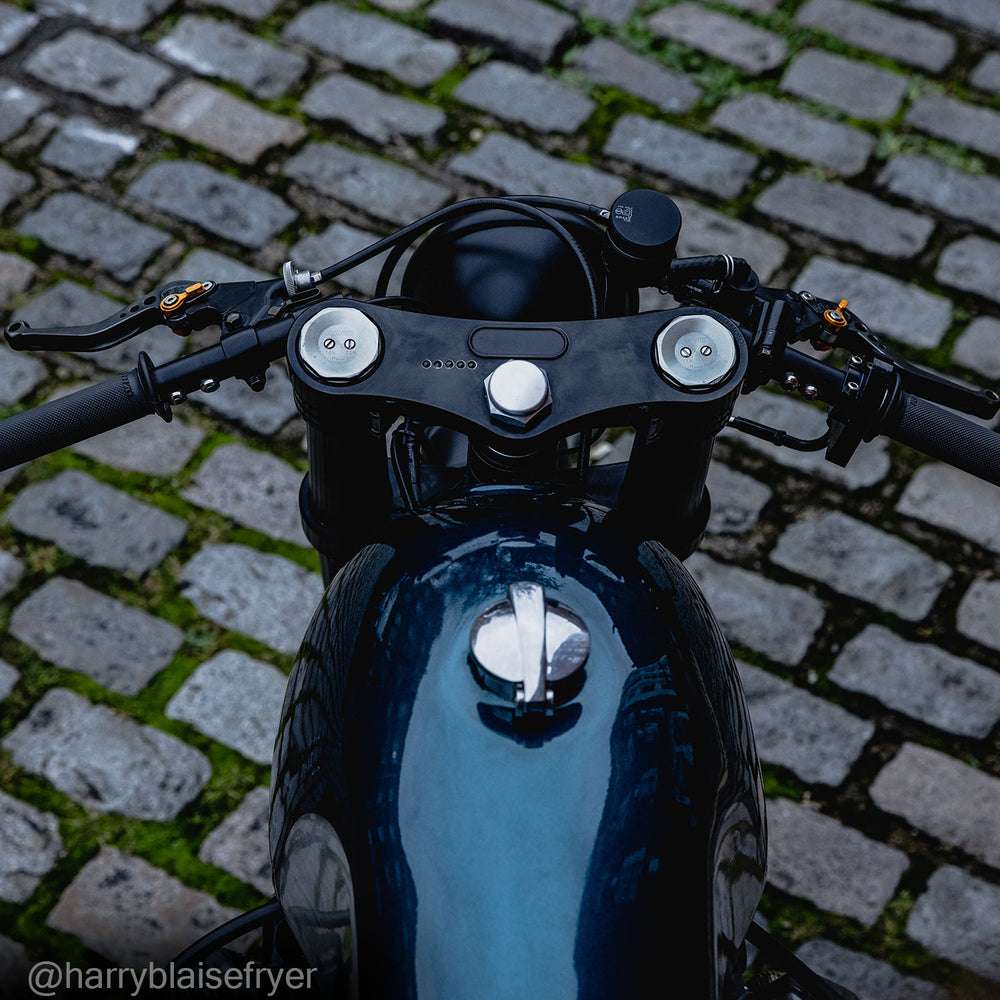

Thanks to its compact dimensions, the Motogadget Motoscope Mini Speedometer can be mounted on various parts of any vehicle, whether standalone on the fork bridge or handlebars, within existing instrument panels, or even recessed in the tank or GFK.

Universal mounting brackets as well as specific solutions for certain vehicle types are available.

Connection and Sensors:

The Motogadget Motoscope Mini Speedometer simple wiring facilitates easy installation, even for users unfamiliar with vehicle electronics.

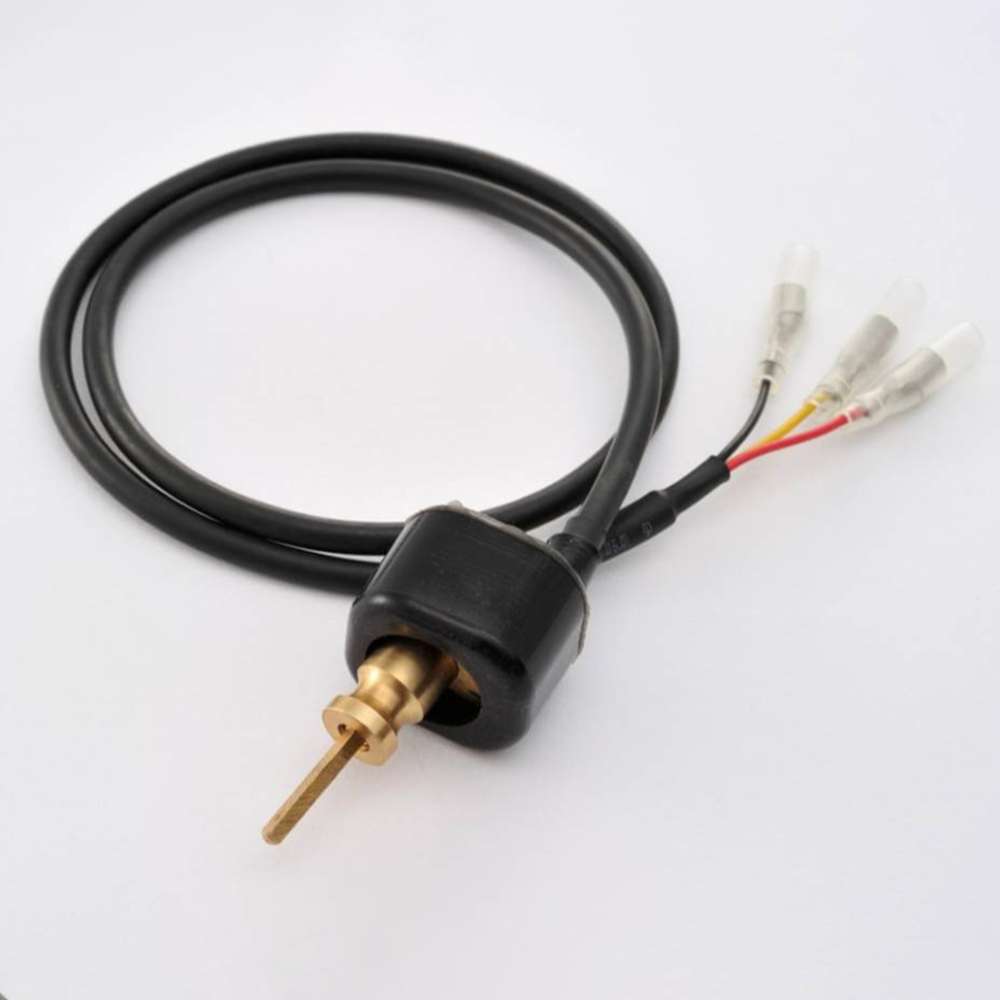

The included stainless steel tachometer sensor, with its small size (M5/25 mm) and 1.5 m long connection cable, can be effortlessly attached to the front or rear wheel.

For vehicles with original mechanical speedometer drives, conversion is straightforward using the supplied sensor.

The motoscope mini is compatible with many original speedometer sensors, eliminating the need for mechanical sensor installation.

An intelligent ‘teach function’ allows for easy tachometer calibration, even on vehicles with transmission-mounted sensors.

Functions:

• Length/width/depth: 59 mm/21.5 mm/13 mm
• Weight: approx. 32 g
• Mounting: 2 x M3 threaded bush
• Current consumption in operation: approx. 100 mA
• Current consumption in idle state: 0 mA
• Operating voltage: 7 V – 18 V
• Operating temperature: -20°… +80°C
• Tachometer (LED bar): 6/ 8/ 10/ 14/ 16 rpm
• Tachometer (numerical): 0 – 20 rpm
• Limit setting/shift flash: 0 – 20,000 rpm
• Speedometer: 0 – 999 km/h or mph
• Trip meter: 0 – 999.99 km or mi
• Total kilometers (adjustable): up to 99 999 km or mi
• Travel time display: 0 – 99:59 h/min
